Apache Fiber
Fiber optic system IP with high immunity to electromagnetic disturbances and surges on the field for rigid and mesh fences
HOW THE SYSTEM WORKS

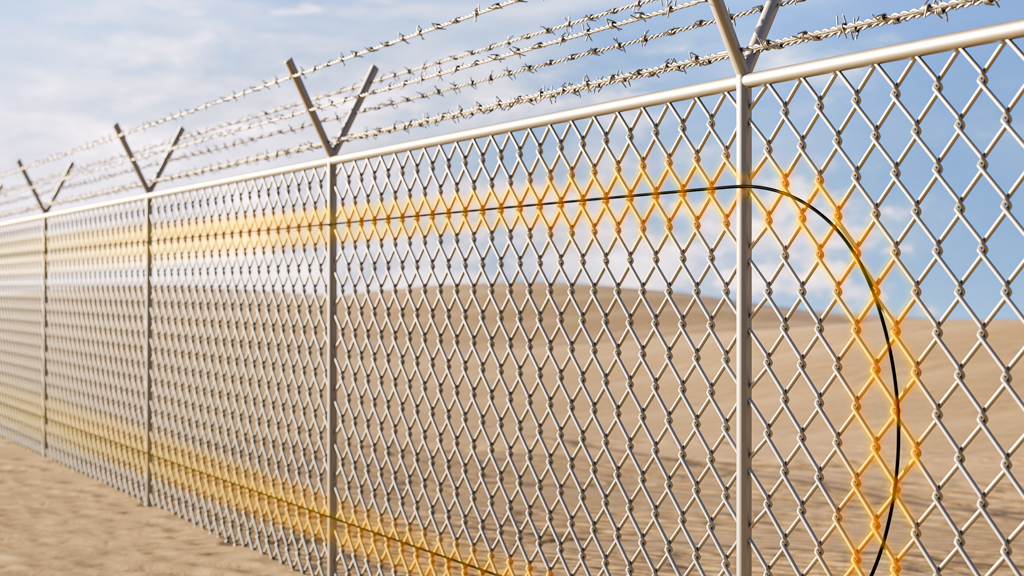

The sensing element is the optical fiber crossed by a beam of light. The latter undergoes changes directly related to physical changes induced on the fiber during intrusion attempts. The microprocessor analyzes variations in the signal generated by the difference between the beam of light sent and received, through special algorithms able to discriminate natural events such as wind, rain, hail from real intrusion attempts. Furthermore, through the simulation of the events that you want to track, you can, after installation and in real working conditions, optimize the parameters of detection to drastically reduce the rate of false alarms. Each apache fiber analyzer is able to
manage up to 1000m of optical fiber for single zone and 2000mfor dual zone.

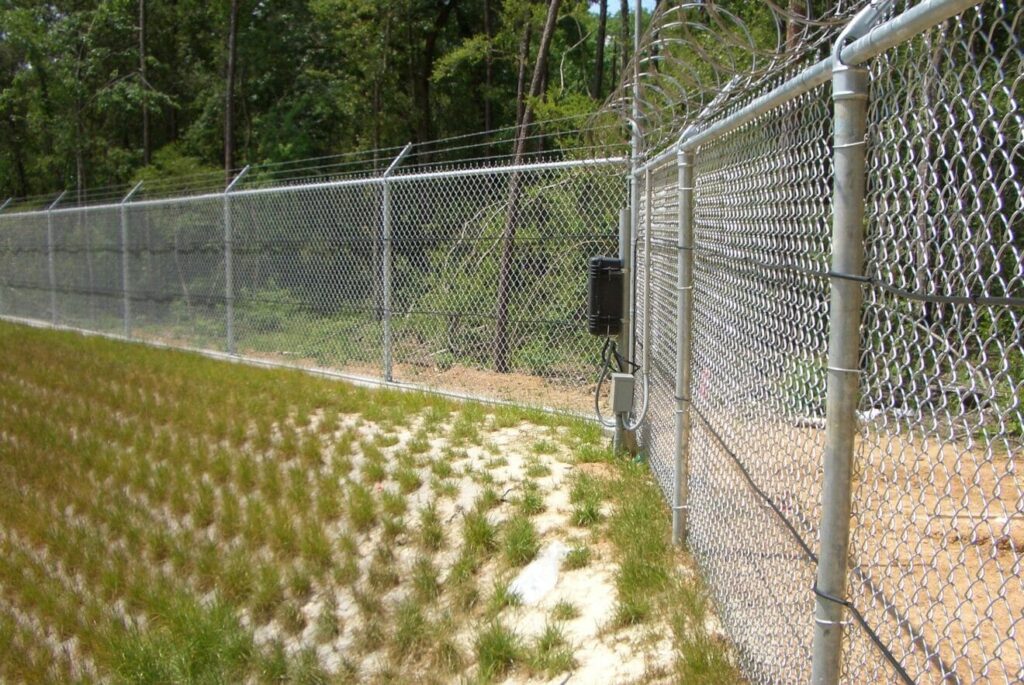

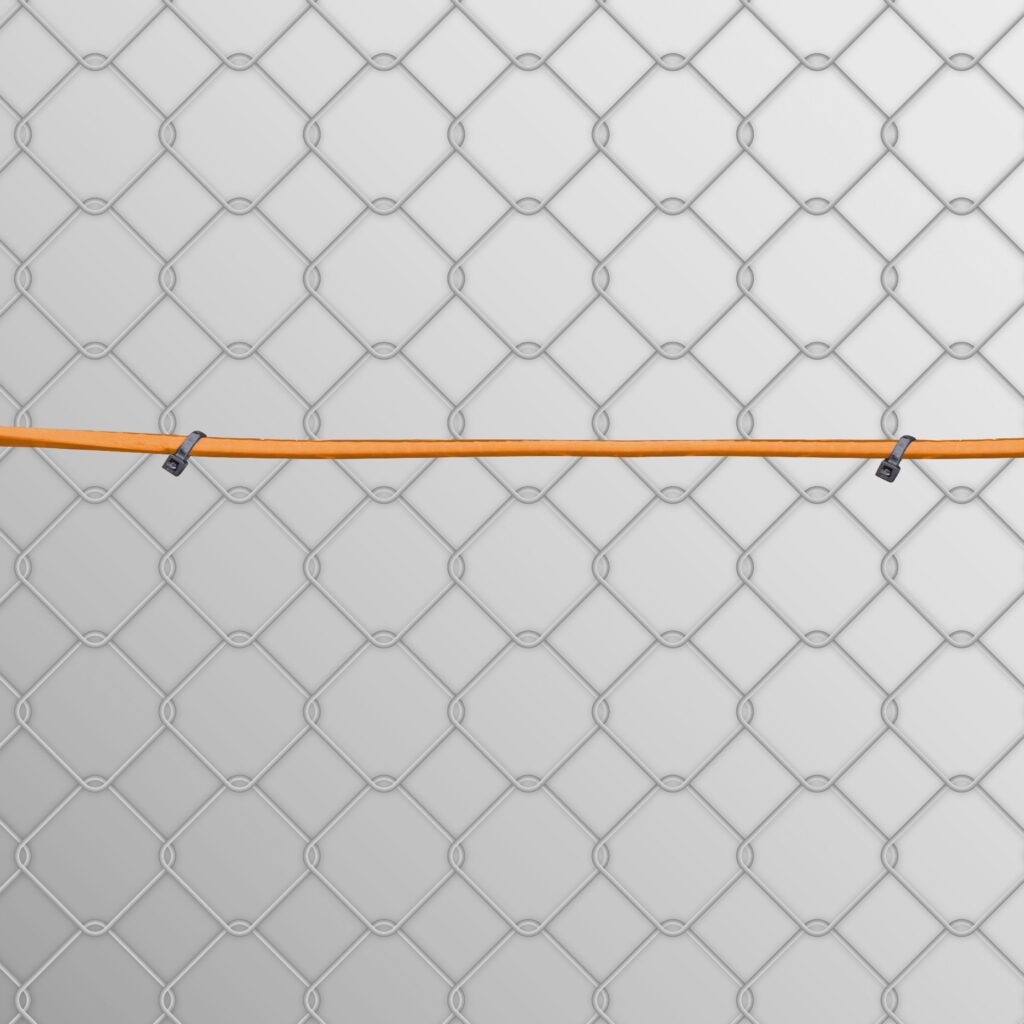

APACHE FIBER is a perimeter protection system with optical fiber suitable for the detection of intrusion fence. It uses optophonic technology for the detection of all those typical of intrusion attempts like climb, cut or break through the fence. The advantages of the technology of using fiber optics technology in the field of intrusion detection on fences perimeter are:
- Reliability of detection
- Possibility to make considerable distances without intermediate power supplies
- Total immunity to interference due to lightning discharges
- Also particularly suitable for the protection of sites with corrosive atmospheres or explosive as the optical fiber cannot cause fire.
Tech Features
Technology Optofonic fiber
Range (m) 1000m
Power 13,8Vdc or PoE
Consumption (mA) 300mA
Communication dry contacts/RS485/IP
Relay outputs Alarm and Tamper
Tuning On Board and Software
Software Apache Test
Color black
IP grade 55
Temperature °C -40°C+70°C
Dimensions (cm) 23/26/90
MTBF (Medium Time Before Failure) (h) 150.000
MTTR (mean time to restore) (mins) 15min
POD (Probability of Detection) 95%
FAR (False Alarm Rates) 10/1000m/year
Certification CE
